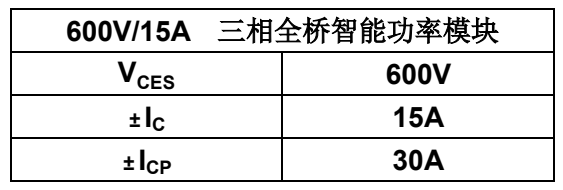

主要参数 MAIN CHARACTERISTICS
用途
● 空调压缩机
● 低功率变频器
产品特性
● 下臂 IGBT 发射极输出,内置自举二极管。
● 600V/15A 三相逆变器,内置低损耗沟道栅-场截止型 IGBT。
● IGBT 驱动:增强型输入滤波,上下臂互锁,高速 600V电平转换,电源欠压保护,短路(过流)保护。
● 故障信号:对应于短路(过流)和 VP1 电源欠压故障。
● 输入接口:兼容 3.3V &5V 输入信号,高电平有效。
● 温度检测:负温度系数热敏电阻检测输出。
APPLICATIONS
● Air-conditioning compressor
● Low power inverter
FEATURES
● Lower arm IGBT emitter output, built-in bootstrap diode.
● 600V/6A three-phase inverter with built-in low-loss trench gate-field stop IGBT.
● IGBT drive: enhanced input filtering, interlocking of upper and lower arms, high-speed 600V level
conversion, power supply undervoltage protection, short circuit (overcurrent) protection.
● Fault signal: corresponds to short cir cuit (overcurrent) and VP1 power undervoltage fault.
● Input interface: compatible with 3.3V&5V input signals, high level effective.
● Temperature detection: negative temperature coefficient thermistor detection output.

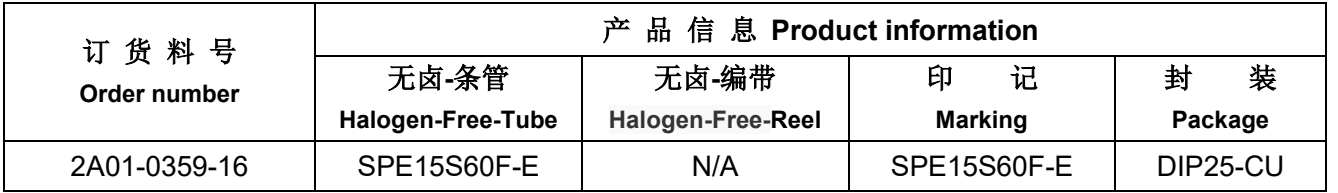

订货信息 ORDER MESSAGE
